The QL-RCU EN is the Qlite Room Controller Unit for Enigma Series Guest Room Management Systems. It is a prewired RCU panel with controller, switching units, dimmer units, curtain control units, fan coil control units etc depending on the requirement. Any or all of the following modules are included in the panel based on the requirement

• Controller module
• Relay module
• Dimmer module
• Curtain control module
• Fan coil control module
• Binary input module

The QL-CP EN enigma series of control panels are control panels to be used with QL RCU EN enigma series controller. These include all control panels like energy saving key card holder, bedside panels, corridor panels, other light control panels etc.

These are elegantly finished control panel available in a wide variety of standard finishes. The panels are customizable on project basis.

The panels are divided into two type based on their sizes – one size that fits into a standard 3'' X 3'' back box with fixing centers at 60.3mm and other size that fits into a standard 6'' X 3'' back box with fixing centers at 120mm.

There are variety of combinations of buttons with or without status LED and icons available on these two sizes of control panels to be chosen from. All these panels come in a screw less clip-on contruction.

The control panels are not only elegant but are made with 'membrane switch' technology for increasing the mechanical life of the buttons and 'easy replace' method for maintenance purposes.

• Useable with Enigma series RCU
• Available in a variety of elegant finishes
• Does not require a non standard back box
• Customizable for number of buttons and backlit LED
• Membrane switch technology
• Screw-less construction

The QL-RCU is the Qlite Room Controller Unit for Guest Room Management Systems. It is a prewired RCU panel with controller, switching units, dimmer units, curtain control units, fan coil control units etc depending on the requirement. Any or all of the following modules are included in the panel based on the requirement –

• Controller module
• Relay module
• Dimmer module
• Curtain control module
• Fan coil control module

The panel is fully programmable for

• Welcome mode
• Energy saving mode
• Operation for Do Not Disturb, Make up Room and Laundry services.
• Disabled friendly functionality

The panel is compact and can be mounted near the distribution board or in the false ceiling with minimal wiring required between distribution board and RCU panel.

The QL-CPB01 is a glass finish feather touch bedside control panel for Qlite Guest Room Management System. It is available in many finishes. It is an elegant user interface for service selection, lighting, curtain etc controls from the bed.

The QL-CPB01 sits on the QL NET bus takes power from the bus and gives commands to the actuator or controller depending on the system architecture.

The QL CPB01 is available in a screw less clip-on construction with black, white and gold as standard finishes. It is a flush mounting plate which fits into a standard single gang 6' X 3' back box with fixing centers at 120mm. The icons and color scheme are fully customizable as per project requirement.

The service indication icons are backlit with Red, Green and Yellow LEDs for various services and bell touch button. The icons and color scheme on the panel are fully customizable as per project requirement.

• Available in a variety of finishes
• Does not require a non-standard back box
• Operates in QL NET mode and NE 100 mode
• Finish and engraving customizable for special projects
• Brightness auto-adjusting backlit LED
• Elegant and convenient control from comfort of the bed

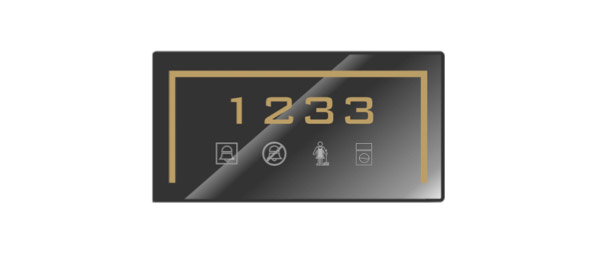

The QL-CPH01 is a glass finish feather touch corridor panel for Qlite Guest Room Management System. It is available in many finishes. It is an elegant user interface for service indication and bell push placed outside the guest room.

The QL-CPH01 sits on the QL NET bus takes power from the bus and gives commands to the actuator or controller depending on the system architecture.

The QL CPH01 is available in a screw less clip-on construction with black, white and gold as standard finishes. It is a flush mounting plate which fits into a standard single gang 6' X 3' back box with fixing centers at 120mm.

The service indication icons are backlit with Red, Green and Yellow LEDs for various services and bell touch button. The icons and color scheme on the panel are fully customizable as per project requirement.

• Available in a variety of finishes
• Does not require a non-standard back box
• Operates in QL NET mode and NE 100 mode
• Finish and engraving customizable for special projects
• Brightness auto-adjusting backlit LED
• Elegant and convenient control from comfort of the bed

The QL-KTH is an energy saving keycard holder module. It is available in plastic as well as glass touch finishes. It is an elegant user interface for energy saving as well as service selection panel for hotel guest rooms.

The QL-KTH sits on the QL NET bus takes power from the bus and gives commands to the actuator or controller depending on the system architecture.

The QL KTH is available in a screw less clip-on construction and fits into a standard single gang 3' X 3' back box with fixing centers at 60.3mm. It operates in QL NET mode or NE100 mode depending on the system architecture.

The Qlite Guest Room Management System can be configured for welcome modes and energy saving modes which are selected based on commands from the QL KTH module. The module additionally has 3 buttons for service selection of ‘Do Not Disturb’, ‘Service My Room’ and ‘Laundry’ selection.

The module also has a facility of accepting 2 binary input signal from any 3rd party system to select the welcome and energy saving modes.

• Available in multiple finishes
• Does not require a non-standard back box
• Operates in QL NET mode and NE 100 mode
• Two binary input ports
• Buttons for service selection
